配件系列 — TC中擺
技術(shù)參數(shù)

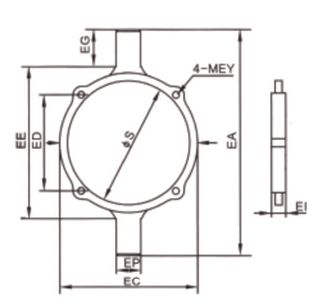

外型尺寸
| 缸徑/符號 | EA | EC | ED | EP | S | EG | El | EY | EE |
| 32 | 86 | 52.5 | 33 | 12 | 38 | 16 | 20 | M6 | 53.5 |
| 40 | 104 | 57 | 37 | 25 | 46 | 22 | 27 | M6 | 59.5 |
| 50 | 116 | 66.5 | 47 | 25 | 55.5 | 22 | 28.2 | M6 | 72.5 |
| 63 | 138 | 79 | 56 | 25 | 69.5 | 25.5 | 31 | M8 | 87 |
| 80 | 165.5 | 100.7 | 70 | 25 | 87.8 | 26.5 | 29.2 | M10 | 112.5 |
| 100 | 185 | 121.8 | 84 | 25 | 107.5 | 26.5 | 31.3 | M10 | 132 |
| 125 | 212.5 | 147.5 | 110 | 30 | 135 | 25.5 | 36 | M12 | 161.5 |
| 160 | 264 | 198 | 140 | 32 | 175 | 31 | 40 | M16 | 202 |
| 200 | 315 | 245 | 175 | 32 | 216 | 36 | 50 | M16 | 243 |
| 250 | 396 | 300 | 225 | 40 | 273 | 40 | 51 | M20 | 313 |
